Reliable Connections for High-Pressure Applications

Pup Joint

Pup Joints are essential components used in high-pressure treating, fracturing, and well-servicing applications, ensuring secure and reliable connections.

Designed for durability, our Pup Joints maintain a tight seal under all operational conditions and can be customized with specific coatings and configurations to meet your project requirements.

Constructed from high-quality materials, they provide long service life and excellent performance in both standard and extreme pressure conditions, making them a reliable choice for your job site needs.

Product Catalog
Size Length Connection Pressure Rating MAWP(PSI)

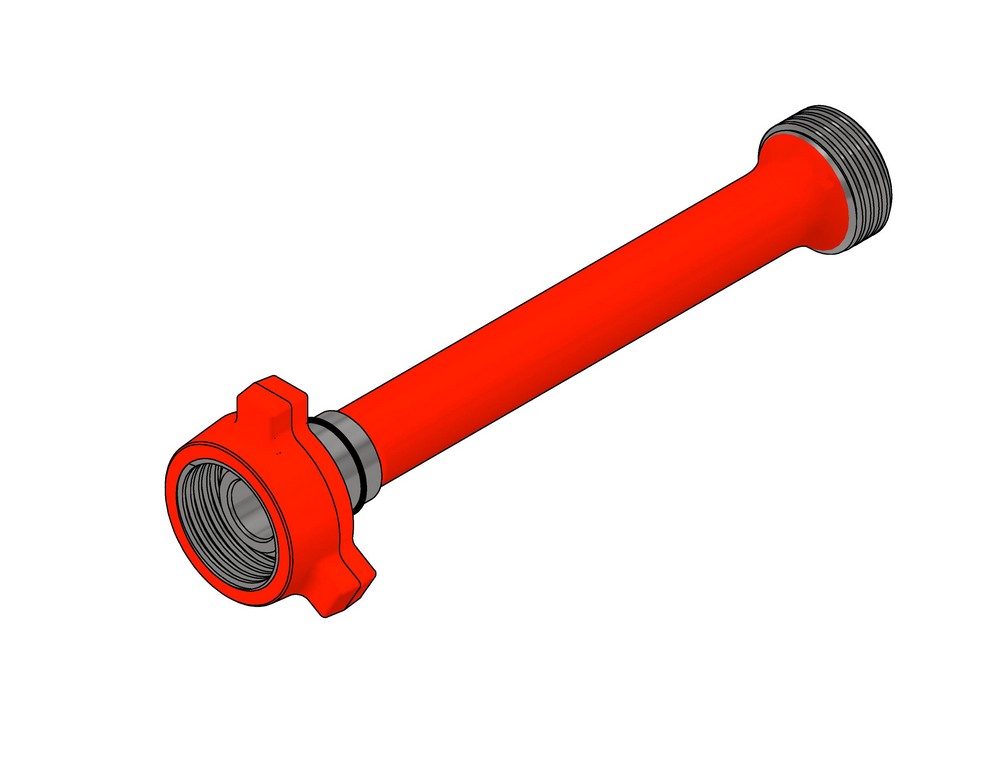

INTEGRAL (MXF/FXF/MXM)
SOUR/STANDARD
TAPPED/UNTAPPED
2″ 6.03IN 1502 10,000
15,000
6.19IN 1502 10,000
15,000
6.74IN 1502 10,000
15,000
8.22IN(UNTAPPED) 1502 10,000
15,000
8.22IN(TAPPED) 1502 10,000
15,000
9.00IN 1502 10,000
15,000
9.19IN(UNTAPPED) 1502 10,000
15,000
9.19INT(TAPPED) 1502 10,000
15,000
15.46IN 1502 10,000
15,000
21.75IN(UNTAPPED) 1502 10,000
15,000
21.75IN(TAPPED) 1502 10,000
15,000
1 FT 1502 10,000
15,000
2 FT 1502 10,000
15,000
3 FT 1502 10,000
15,000
4 FT 1502 10,000
15,000
5 FT 1502 10,000
15,000
6 FT 1502 10,000
15,000
8 FT 1502 10,000
15,000
10 FT 1502 10,000
15,000
3″ 6.00IN 1502 10,000
15,000
6.43IN 1502 10,000
15,000
9.00IN 1502 10,000
15,000
12.69IN(TAPPED) 1502 10,000
15,000
15.69IN(UNTAPPED) 1502 10,000
15,000
15.69IN(TAPPED) 1502 10,000
15,000
1 FT 1502 10,000
15,000
2 FT 1502 10,000
15,000
3 FT 1502 10,000
15,000
4 FT 1502 10,000
15,000
5 FT 1502 10,000
15,000
6 FT 1502 10,000
15,000
8 FT 1502 10,000
15,000
10 FT 1502 10,000
15,000
4″ 1 FT 1502 10,000
15,000
2 FT 1502 10,000
15,000
3 FT 1502 10,000
15,000
3 FT(FXF) 1502 10,000
15,000
2″ 18.00IN 602 6,000
1 FT 602 6,000
2 FT 602 6,000
3″ 1 FT 602 6,000
2 FT 602 6,000
4″ 1 FT 602 6,000
2 FT 602 6,000

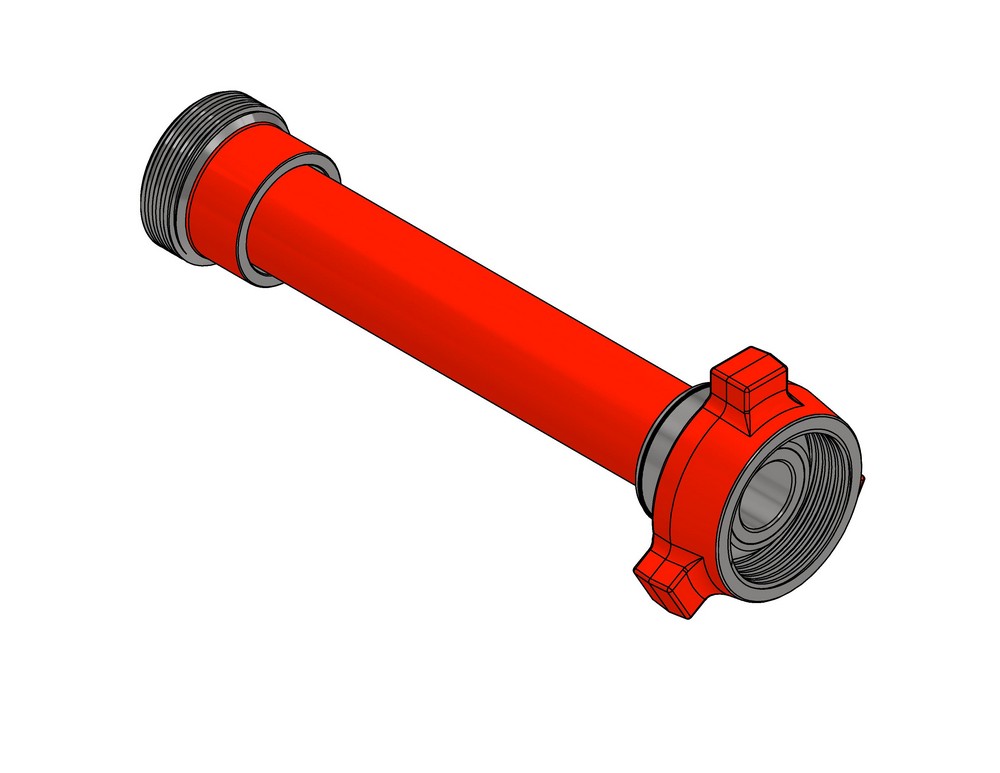

NPST
DETACHABLE
1″ 1 FT 1502 15,000
2 FT 1502 15,000
3 FT 1502 15,000
4 FT 1502 15,000
5 FT 1502 15,000
6 FT 1502 15,000
8 FT 1502 15,000
10 FT 1502 15,000
2″ 1 FT 1502 15,000
2 FT 1502 15,000
3 FT 1502 15,000
4 FT 1502 15,000
5 FT 1502 15,000
6 FT 1502 15,000
8 FT 1502 15,000
10 FT 1502 15,000
3″ 1 FT 1502 15,000
2 FT 1502 15,000
3 FT 1502 15,000
4 FT 1502 15,000
5 FT 1502 15,000
6 FT 1502 15,000
8 FT 1502 15,000
10 FT 1502 15,000
WELDED
2″ 1 FT 206 2,000
2 FT 206 2,000
3 FT 206 2,000
4 FT 206 2,000
5 FT 206 2,000
6 FT 206 2,000
8 FT 206 2,000
10 FT 206 2,000
3″ 1 FT 206 2,000
2 FT 206 2,000
3 FT 206 2,000
4 FT 206 2,000
5 FT 206 2,000
6 FT 206 2,000
8 FT 206 2,000
10 FT 206 2,000
15 FT 206 2,000
20 FT 206 2,000
4″ 1 FT 206 2,000
2 FT 206 2,000
3 FT 206 2,000
4 FT 206 2,000
5 FT 206 2,000
10 FT 206 2,000
2″ 1 FT 602 5,000
2 FT 602 5,000
3 FT 602 5,000
4 FT 602 5,000
5 FT 602 5,000
6 FT 602 5,000
8 FT 602 5,000
10 FT 602 5,000
15 FT 602 5,000
20 FT 602 5,000
3″ 1 FT 602 6,000
2 FT 602 6,000
3 FT 602 6,000
4 FT 602 6,000
5 FT 602 6,000
6 FT 602 6,000
8 FT 602 6,000
10 FT 602 6,000
4″ 1 FT 602 6,000
2 FT 602 6,000
3 FT 602 6,000
4 FT 602 6,000
5 FT 602 6,000
6 FT 602 6,000
8 FT 602 6,000
10 FT 602 6,000
DATA HEADERS
2″ 2 FT 206 2,000
2 FT 602 6,000
2 FT 1502 10,000
3″ 2 FT 206 2,000
2 FT 602 6,000
2 FT 1502 10,000
4″ 2 FT 206 2,000
2 FT 602 6,000


High-pressure well-servicing lines, fracturing lines, testing lines, cementing and circulating lines, and other well service and stimulation applications
