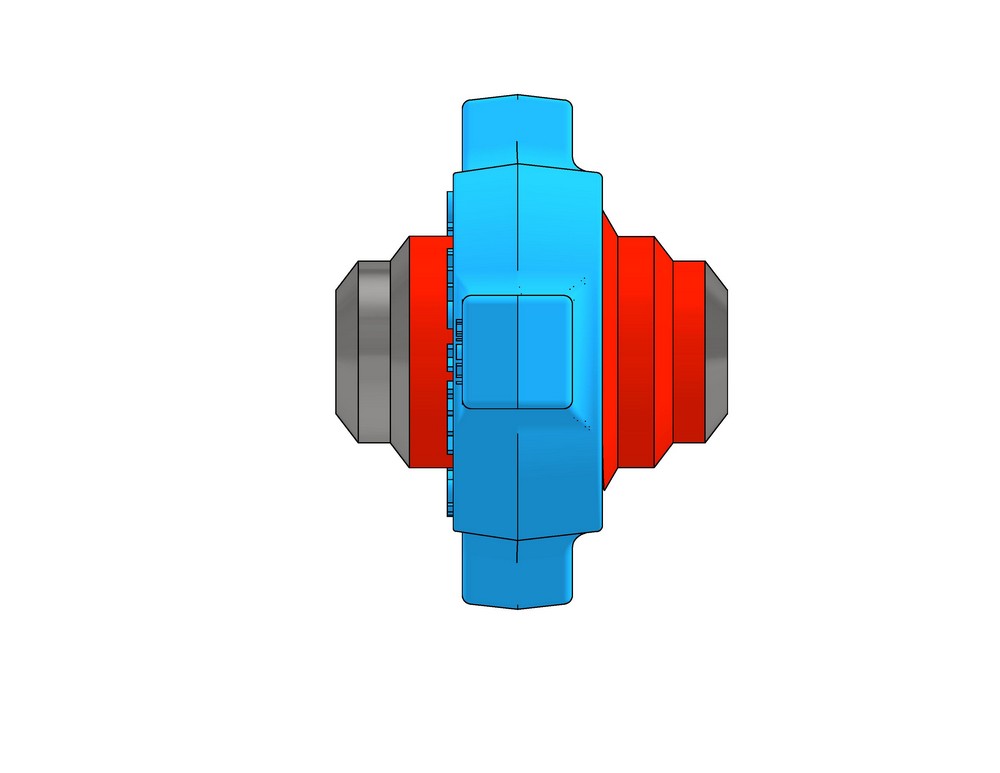

Our Hammer Unions provide secure and dependable connections for high-pressure environments. Engineered to withstand the toughest conditions, they offer reliable performance in a range of industrial applications.
Built with robust materials, our Hammer Unions ensure longevity and resistance to wear, making them the ideal choice for demanding operations.
Available in various sizes and configurations, these unions can be customized to meet the specific needs of your project, ensuring a perfect fit every time.
Designed for a tight seal, our Hammer Unions effectively prevent leaks and provide long-lasting reliability under pressure.
| Figure No. | Pressure rating, psi, bar | Sour gas (see note 8) | ||
|---|---|---|---|---|
| Cold working | Test | Cold working | Test | |
| 100 | 1,000 (69) | 1,500 (103) | N/A | N/A |
| 200 | 2,000 (138) | 3,000 (207) | N/A | N/A |
| 206 | 2,000 (138) | 3,000 (207) | N/A | N/A |
| 207 | 2,000 (138) | 3,000 (207) | N/A | N/A |
| 400 | 2,500 (172) | 3,750 (259) | 2,500 (172) | 3,750 (259) |
| 400 | 4,000 (276) | 6,000 (414) | 4,000 (276) | 6,000 (414) |
| 602 | 6,000 (414) | 9,000 (621) | 6,000 (414) | 9,000 (621) |
| 1002 | 10,000 (690) | 15,000 (1034) | 7,500 (517) | 11,250 (776) |
| 1003 | 10,000 (690) | 15,000 (1034) | 7,500 (517) | 11,250 (776) |
| 1502 | 15,000 (1034) | 22,500 (1551) | 10,000 (690) | 15,000 (1034) |
| 1505 | 15,000 (1034) | 22,500 (1551) | 10,000 (690) | 15,000 (1034) |
High-pressure well-servicing lines, fracturing lines, testing lines, cementing and circulating lines, and other well service and stimulation applications
