Valveworks check valves effectively prevent backflow in high-pressure treating, fracturing, and well-servicing operations.
Designed for reliability, our check valves ensure a secure seal in all conditions and can be customized with paint and configurations to match your job site needs.

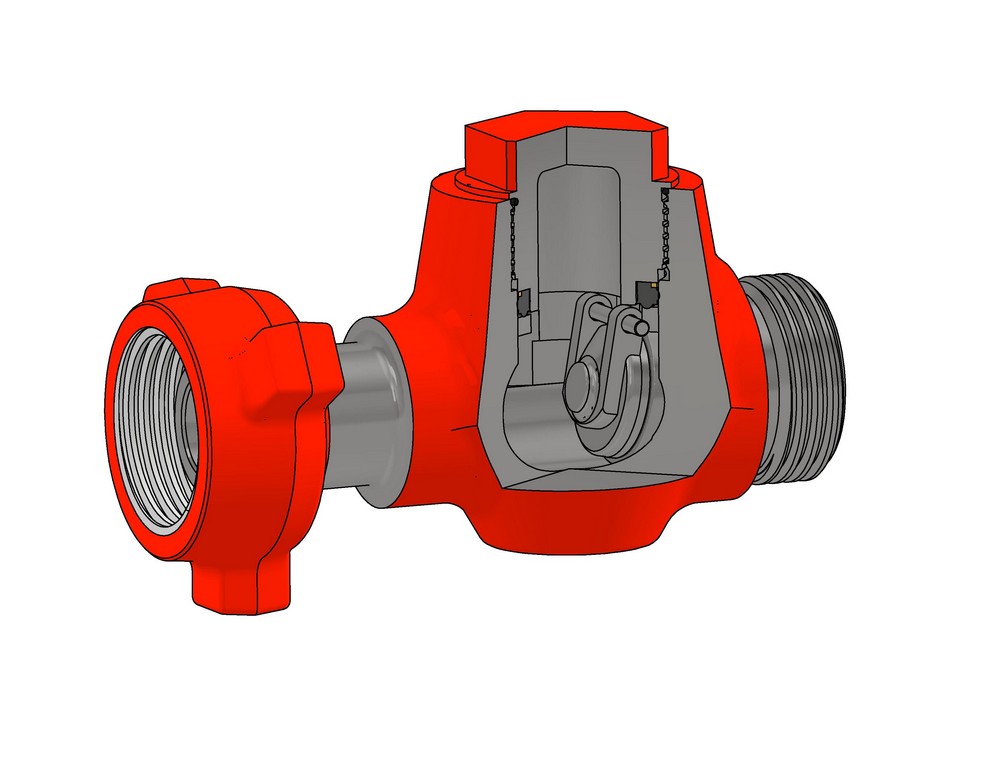

For durability, the flapper and seat of our swing check valves feature titanium nitride coating, while the dart check valve operates with an independent, pressure-actuated response system.
| Size | Cold Working Pressure, psi (bar) | End Connections |
| 3” | 15,000 (1034) | 1502 FxM |
| 15,000 (1034) | 1502 MxF | |
| 4” | 10,000 (690) | 1002 FxM |
| 15,000 (1034) | 1502 MxF |
High-pressure well-servicing lines, fracturing lines, testing lines, cementing and circulating lines, and other well service and stimulation applications
